3/3/21

Erin Humiston - Bob's Burgers Test animated in TVPaint

 This is a really nice Bob's Burgers animation test done by Erin Humiston , using TVPaint.

Here's the process video (speeded up) -


Here's the final animation in color -


Sadly, he missed the deadline to submit this animation to the contest ... BUT here is a happy ending:

After several years spent at Blue Sky Animation Erin was recently laid-off from Blue Sky with everyone else because Disney is shutting down Blue Sky  😢  (that is NOT the happy ending) , but I saw on a Facebook post he made that he just got picked up as an animator on the Bob's Burgers Movie. (that's the happy ending !)

3/2/21

TVPaint Tip : overscale project with Camera View

 A standard resolution to work at is 1920 x 1080  (HD , 16:9/1.77:1 aspect ratio).

One of the advantages of programs like Harmony or Flash (Animate) is that you can draw or make notes outside of the main drawing stage or camera view.   You can do that with TVPaint, too, but you have to set it up properly when you start a New Project.   It's also useful to have this extra border area to adjust the Camera fielding if you need to pull-out  or push-in a bit , or shift the camera east/west or north/south.

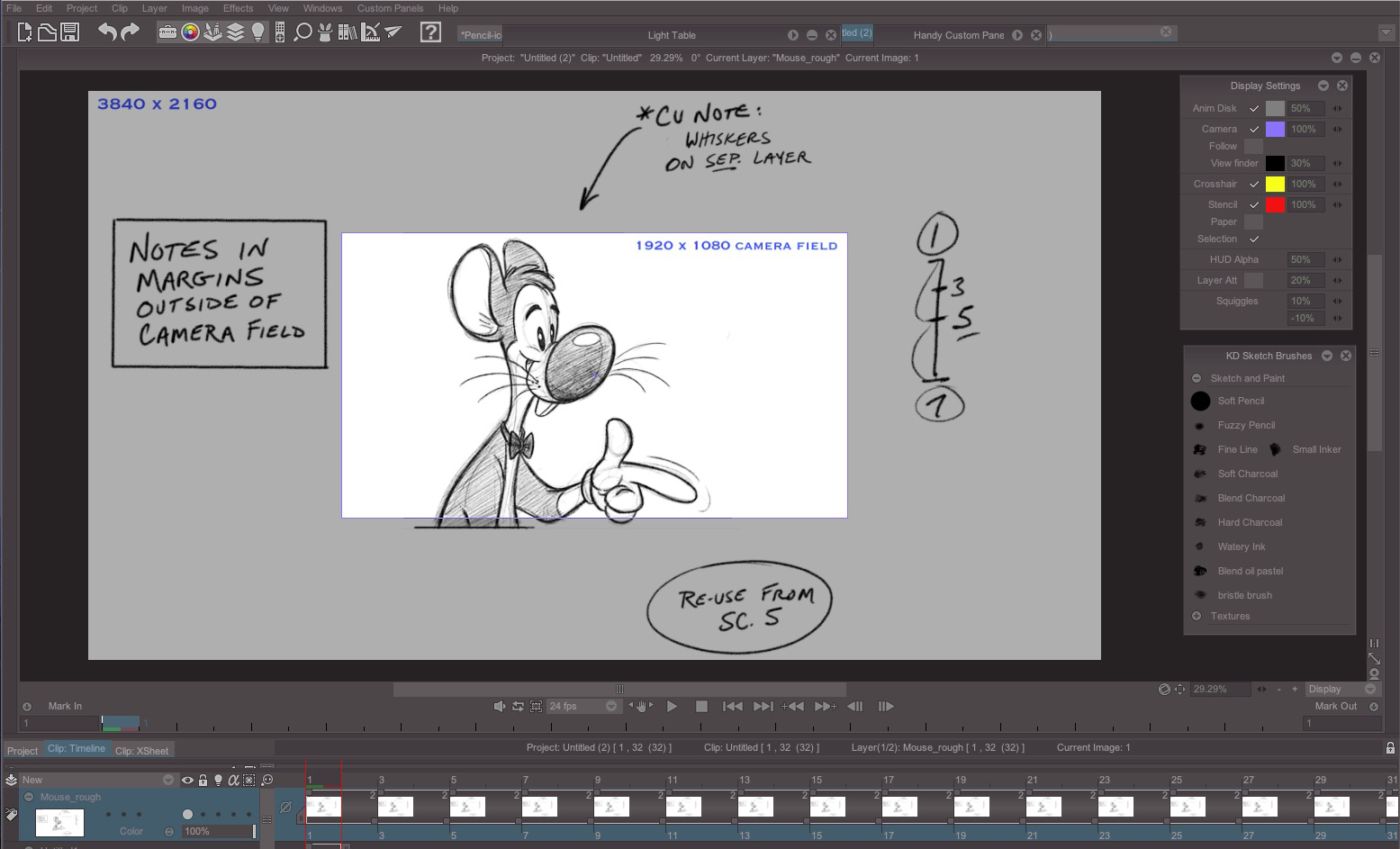

When you go to File Menu > New Project  (Shift N) , in the New Project window there is the option to set the Project With Camera View.  This creates a scaled up project size with the Camera View set to the desired output resolution (such as 1920 x 1080).  You add 120% , 150% , 200% , or whatever you want.  I usually scale mine at a ratio of 200%.  This makes the overall project size 3840 x 2160 , with a 1920 x 1080 camera view.


All the animation is drawn to work within the 1920 x 1080 camera view window . Anything outside of the 1920 x 1080 camera view will not be seen when the project is exported.   The excess area around the Camera View can be used for Notes.


Another reason to create a project with Camera view is to be able to draw the character out further beyond the edge of the screen (off-camera), such as when a character is walking on or off and their legs are not necessarily in view , but it's helpful to the animator to be able to draw out the character's feet and legs beyond the edge of the frame to make sure the placement is accurate as the character enters or exits.



When you're working on the animation at full size , you can zoom-in the project window so you're not seeing the margin areas with the notes , but whenever you need to check the notes or add notes , it's easy to zoom out the interface to see the margins around the Camera field.

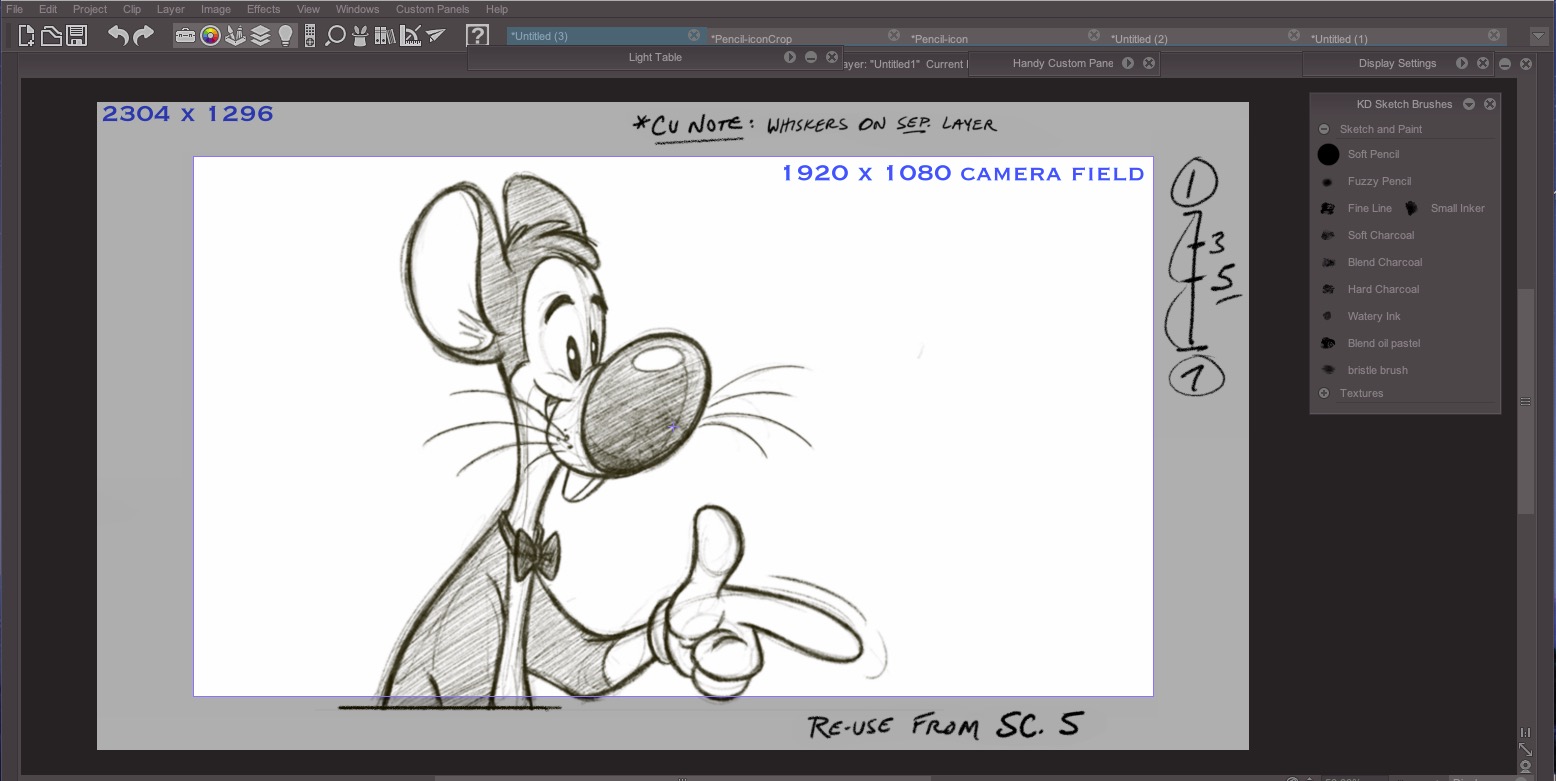

If you were to create a Project With Camera View that is sized up at 120% you'll have less margin area to work with for adding Notes, etc. , but it can be enough.  I find that usually a ratio of 160% - 200% is more comfortable for me.


(again, when you export the animation to .MOV or .MP4 only the animation that is drawn within the 1920 x1080 camera field will be visible.)









3/1/21

COLZA - by Gobelins school students Victor Chagniot, Camille Broutin, Matthieu Daures, , Victoria De Millo Gregory, , Maxime Jouniot, Jade Khoo

 The students at the Gobelins School continue to produce beautifully crafted animated films, most made with TVPaint , including this one , "COLZA"  made by Victor Chagniot, Camille Broutin, Matthieu Daures, , Victoria De Millo Gregory,  , Maxime Jouniot, , Jade Khoo .  (be sure to watch in Full Screen mode at full 1080p HD quality. Turn captions ON to see English subtitles)

COLZA - Animated Short Film 2020 from GOBELINS pro on Vimeo.

The animation and coloring was done in TVPaint, the backgrounds painted in Photoshop and the final compositing was done in After Effects.   (Although you can paint the backgrounds directly in TVPaint many background painters are more familiar with Photoshop , but you can easily import Photoshop .PSD files into TVPaint  ... and also export artwork created in TVPaint as a .PSD file to take it into Photoshop. TVPaint has a special script available to Export your animation from TVPaint to After Effects, which keeps all of the layers and exposures intact.   This allows for animating and coloring in TVPaint, then moving the whole scene over to After Effects to add additional compositing effects.)

------

More Gobelins animated short films here:

https://vimeo.com/gobelinspro

and here:

https://www.youtube.com/user/gobelins/search?query=Animation+short+2020+-+GOBELINS
